SMD3030 80x150 Degree Solar Street Light Module 160lm/W 12V 50W Heat Sink

Name: SMD3030 80x150 Degree Solar Street Light Module 160lmW 12V 50W Heat Sink
Brand: Sunshineopto
Price: 1 USD

Wholesale SMD3030 80x150 Degree Solar Street Light Module 160lm/W 12V 50W Heat Sink from china suppliers

Brand Name : Sunshineopto

Model Number : SUN-SL72-3030-80x150

Certification : SGS,ROHS

Place of Origin : Shenzhen,China

MOQ : 1

Payment Terms : T/T,PAYPAL,Western Union,Money Gram

Supply Ability : 5000pcs/months

Delivery Time : 3-4 working days

Packaging Details : Cartons

Product name : 12V 50W SMD 3030 LED Street Light Module 160lm/w for Solar Street Light

Model No. : SUN-SL72-3030-80x150

Angle : 80x150 degree

Lens dimension : 250x74x6.15mm

Lens Material : Optical grade PC

LED CHIP : 3030 SMD LED, 150-160lm/w 150mA,6v

Tranmittance : 91%

Accessory : gasket and lens+PCB+ 3030SMD LED+Heat sink

PCB size : 226x57.9x1.5mm

PCB Circuit : 2 series 36 parallel

Contact Now

12V 50W SMD 3030 LED Street Light Module 160lm/w for Solar Street Light

Product Feature:

1.This led street light module has a small size can match a variety of lamp housing .

2. Whole led light module use Ph3030 leds ,High quality leds guarantee long life .

3. We can according your require to design new Lens & Board.
4. This SKD 72 LED Array lens with PCB Module is best design power lamps like 50W for per module.

5. It’s the lowest total cost solution ,they can replace existing Metal Halide or HPS bulbs, the old housings can be re-used. The total cost is significantly reduced compared with using new complete LED fixtures.

Specifications:

1, Product Name	12V 50W SMD 3030 LED Street Light Module 160lm/w for Solar Street Light
2, Model No	SUN-SL72-3030-80x150
3, Main parts	Array lens , silicon gasket+PCB+LED+HEAT SINK
4, Lens Material	PC
5, Lens size	250X74MM
6, Transmittance	91%
7,LEDS	3030 SMD LED, 140-150lm 150mA,6v
8, Sample	3-4 work day
9, Delivery	5-7 work days for 10000 sets
10, Angle	80x150 degree /60 degree/90 degree
11, Quality guarantee	If you receive defective items, please email us a picture of the defective part. We will send you replacement without extra charger, or offer refund.
12, Main market	Europe, South America,North America, Asia

Other SMD 3030 Led Module

Model No.	Power(W)	Angle(Degree)	Lens size(mm)	PCB size(mm)	Circuit
SUN-LD3x12-3030-90x90	30	90x90	250x74	228x53x1.5	6S6P
SUN-LD3x12-3030-60x140	30	60x140	120x110	89x89x1.5	6S6P
SUN-LD4X12-3030-60X60	40	60x60	250x74	228x53x1.5	6S8P
SUN-SL56W-3030-30/60/90	50	30/60/90	256.6x78.6	233x55x1.5	7S8P
SUN-SL64W-3030-30/60/90	50	30/60/90	236x70	219.1x53.54x1.5	8S8P
SUN-SL72-3030-60/90	50	60/90	250x74	226x57.9x1.5	8S9P

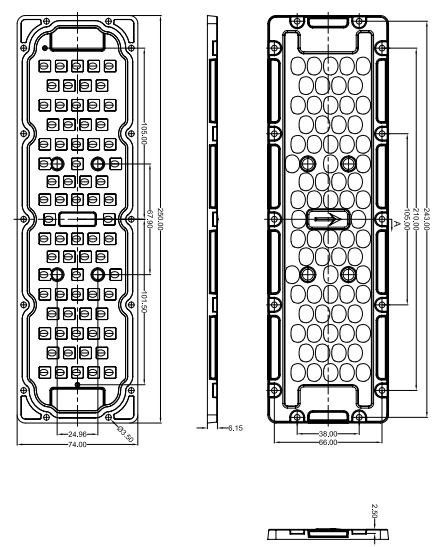

LENS Dimensions :
SMD3030 80x150 Degree Solar Street Light Module 160lm/W 12V 50W Heat Sink

Gasket and PCB size:

Array lens series:

Applications:

It is used in the street light ,high way led lamp,tunnel lamp ,square lamp,road lamp, city lighting, parking spot lamp, track lighting fixtures ,scenery area ,retail lighting and other applications where high luminous flux is desired.
