28 Points 5050 Led High-Efficiency Module For Street Light 30W 50W 60W
1, The module uses high-quality 5050 leds and we provide 2 years warranty .
2, The whole module can support 30watt-60watt ,The luminous efficiency can reach 140-160lm/watt ,
3, The size of this module is 236*70mm ,It's more common and can be used to replace old products .
Quick Detail :
| Model No.: | SUN-LD236X70-5050 |
| Angle: | 90*120°,80*150°,80*150°Vertical, |
| Lens Size: | 236x70mm |
| PCB Size: | 217.7x43.5x1.5mm |
| Lens Material: | Optical grade PC |
| Circuit: | 2 series 14 parallel |
| LED: | 28 pcs 5050 SMD LED |
Technical Parameters :
| Model No. | SUN-LD236X70-5050 |
| Power(W) | 30 | 40 | 50 | 60 |
| Voltage(Vf/V) | 46.03 | 46.50 | 47.25 | 47.08 |
| Current(If/mA) | 648.4 | 848.2 | 1048.3 | 1298.3 |
| Color Temp Tc(K) | 4000 | 4000 | 4000 | 4000 |
| Efficiency (lm/W) | Without lens | 173.87 | 171.37 | 165.00 | 160.04 |
| with lens | 156.53 | 150.83 | 145.90 | 143.27 |
| Luminous Flux (φv/lm) | without lens | 5189 | 6686 | 8124 | 9874 |
| with lens | 4614 | 5949 | 7227 | 8757 |
| Color Index(Ra) | >70 | >70 | >70 | >70 |
| Lens beam angle | 90*120°,80*150°,80*150°Vertical, |
| Wick | 28 pcs 5050 leds |
| Protection level | IP66 |
| Working temperature(℃) | -30 - 50 |
| storage temperature(℃) | -30 - 65 |
| Server Life(H) | 50000 |
Product Picture :
We provide led street light parts, you need to assemble it yourself, if you need us to provide assembly, we need to charge the assembly fee .

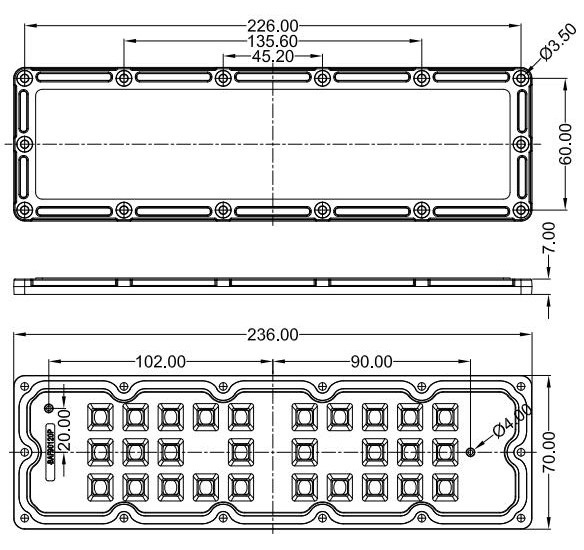

Lens Size :
Light distribution :
Package :
20sets/carton ,14kg ,55*33*21cm each pcs with bubble package to protect it well
Application :
Led Street light ,high way lamp ,tunnel light ,parking light etc .
FAQ
Q1. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q2. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
